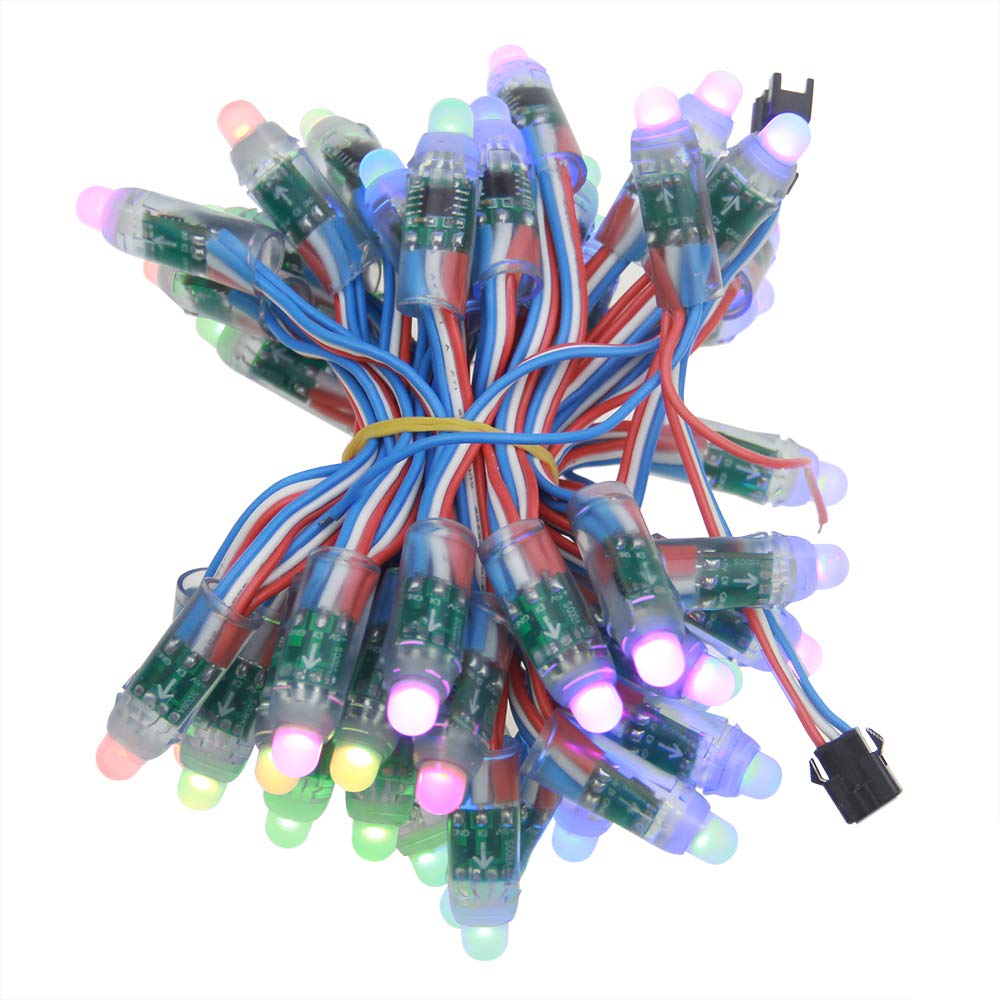

ALITOVE WS2811 12mm Diffused Digital RGB LED Pixel Light 5V Individually Addressable Round Bullet LED Pixels Module IP68 Waterproof DC 5V 50pcs/Set

Brand: ALITOVE

Color: RGB (Red, Green, Blue)

Features:

• 【Individually addressable LED 】 This is digitally-addressable WS2811 LED pixel string lights. Per string has 50pcs F8 RGB LED chips and WS2811 smart IC. You can set the color of each LED and their brightness individually! 256-level brightness and 24-bit color display, achieve 16777216 colors full color display.

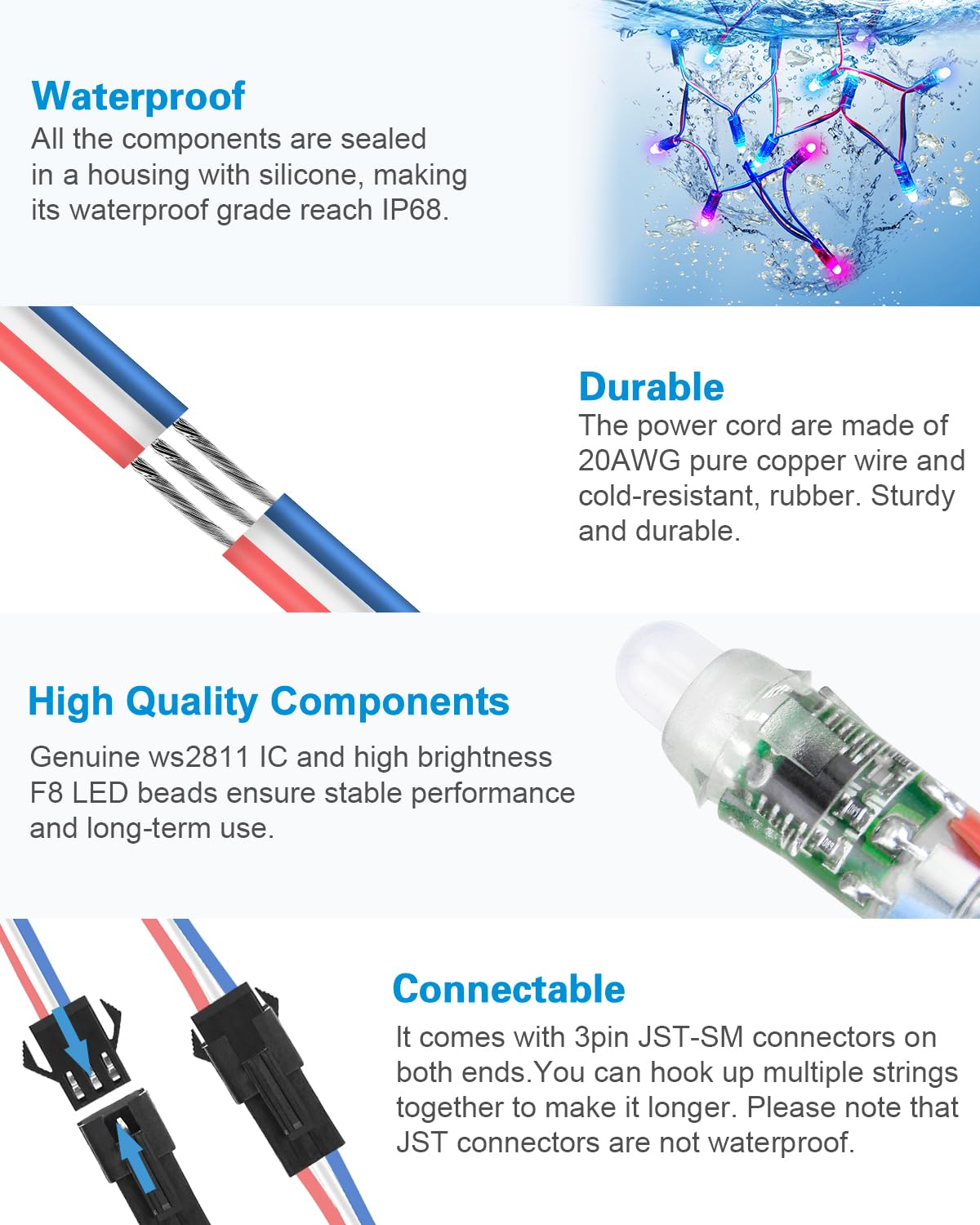

• 【IP68 waterproof and Durable】 We sealed all the components in a housing with silicone, making its waterproof grade reach IP68. The wires are made of cold-resistant, UV-resistant rubber. Superior materials and design enables it to withstand extreme bad weather such as snowstorm, rainstorm, etc, suitable for long-term outdoor and underwater use.
• 【Easily connect and cut】 It comes with 3pin JST-SM connectors and separate power/ground wires on both ends. You can hook up multiple strips together to make it longer and inject power in case of voltage drops. Each pixel can be cut off. So you can shorten or extend the distance, great for DIY lighting projects.(Please note that JST connectors are not waterproof)

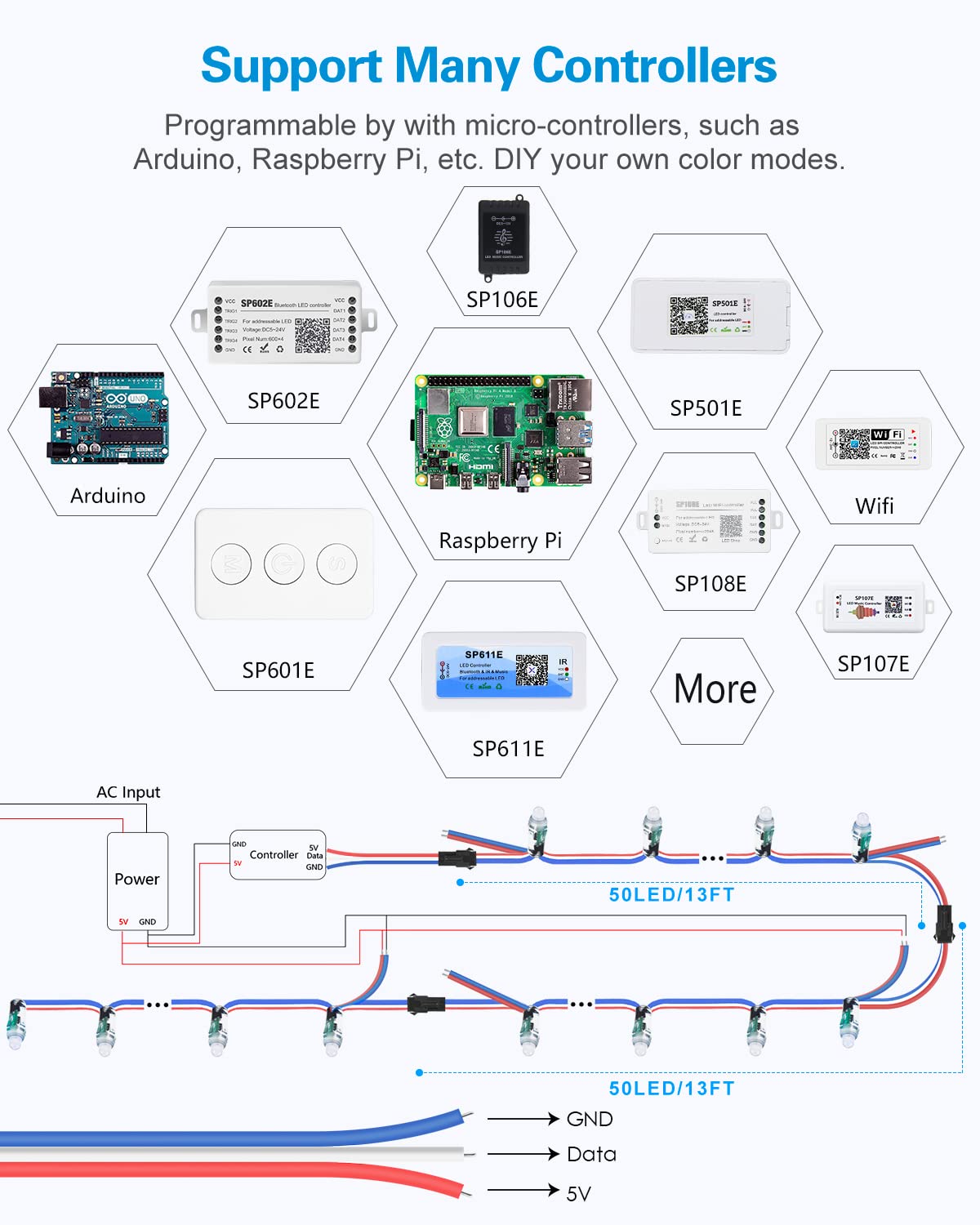

• 【Compatible with many controllers】 It can be programmed with Arduino, Raspberry Pi, T1000S, K1000C controllers and controlled by ALT-C01, SP105E Bluetooth controllers, SP107E SP601E SP602E P608E SP611E SP110E Bluetooth music controllers, SP108E WiFi controllers, SP103E mini RF controllers and any other WS2811 SPI controllers.
• 【Wide Application】 Thanks to the excellent waterproof design, it is widely used in various indoor and outdoor commercial lighting decoration projects, such as outdoor billboards, LED screens, LED wall, hotel, KTV, bars, city skyline, building outline decoration and so on.

Binding: Kitchen

model number: WS2811-5V

Part Number: LED PIXEL

Details: Parameter
Model: WS2811 LED pixel
light source: F8RGB*1
IC Model: WS2811 IC
Quantity: 50 LEDs / set
LED Shape: Round
Color: full color, 24-bit
Gray level: 256
Length: 11.5ft (3.5m) per set

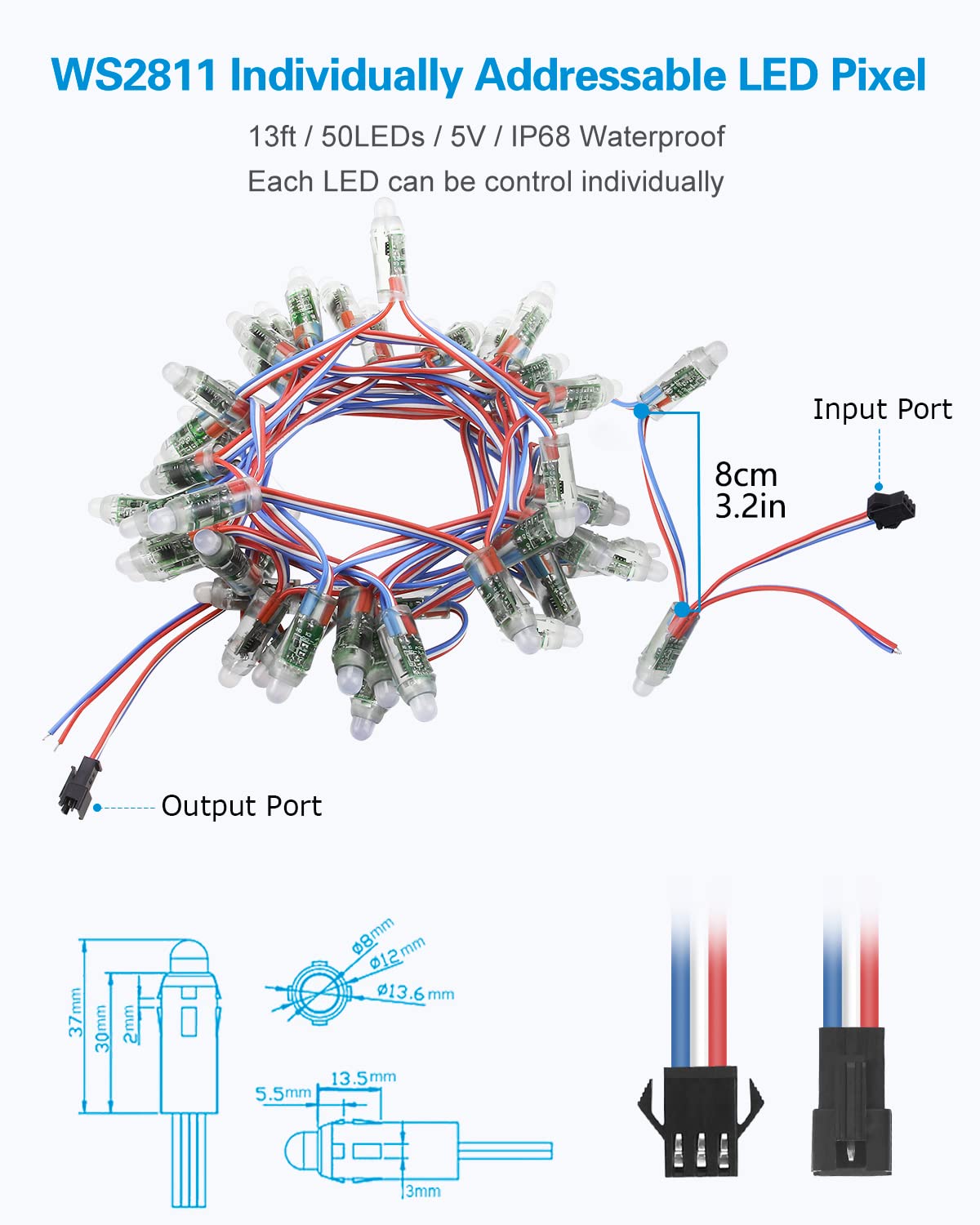

Size: Please refer to the picture
The standard operating voltage: DC 5V
Power: 0.3W/LED (15W/Set)
Waterproof: IP68 waterproof
Connection: Red: +5V; White: DATA; Blue: GND


Kindly note
1) It comes without power supply and controller. You'll need a controller such as an Arduino to use them.
2) The work voltage of the LED string must be 5V DC. Otherwise, it will be burnt out.
3) If you want to hook up more than one string, an external power supply is very necessary.
4) There are small arrows on circuit board to show the direction of the data flow. This will help you confirm the input and output end.


Package:
50pcs WS2811 LED pixels light


Frequently bought together
5V 10A Power supply:
https://www.amazon.com/dp/B0852HL336
SP105E Bluetooth Magic LED Controller:
http://a.co/3FaBmvq
SP103E Mini Wireless RF Remote Controller:
http://a.co/dJsk9PX
T1000S LED Controller:
http://a.co/91MH14K

EAN: 0678425399193

Package Dimensions: 5.3 x 3.7 x 3.3 inches
