EEMB ER17335 2/3A Size 3.6V Lithium Battery Li-SOCL₂ Non-Rechargeable Battery 2100mAh UL Certified Single-Use for Meter Sensor Movement Monitor/Home Security System/Alarm System

Brand: EEMB

Features:

• BASIC INFO—3.6V non-rechargeable 2/3A size lithium thionyl chloride battery; 2100 mAh; 17*33.5mm/0.67*1.32 inch, wide range of temperatures -55°C to +85°C; most suitable for low power consumption devices. please check carefully if the ER17335 battery is the size you need for your electronic device before purchasing.
• APPLICATION- Home automation sensors, door opening detector, temperature sensor, home alarm, bark collar, door sensor, remote control alarm, water meter, electricity meter, gas meter, medical equipment, flashlight, backup power etc
• CAUTION!-Lithium thionyl chloride battery has a passivation characteristic. Therefore, we highly recommend customers use the battery within approximately 2-3 months, depending on the storage condition to receive optimal performance. Although our battery has a 10-year shelf life (under special storage conditions), we advise customers not to store batteries for a long time due to the passivation characteristic. It is highly recommended that you purchase as many as you need.
• CERTIFICATIONS—RoHS and UN 38.3 compliant. More than 400 EEMB batteries are UL certified. Search "MH20555" on UL for all EEMB UL certification information.
• QUALITY SERVICE— We take pride in providing the highest levels of customer satisfaction and we have over 20 years experience in lithium battery business. If you have any questions or concerns regarding our products, please send us a message and we will get back to you within 24 hours.

Binding: Electronics

model number: ER17335

Part Number: ER17335

Details: Lithium Thionyl Chloride (Li-SOCl2) Battery has high energy density, and its nominal voltage is 3.6 V. The bobbin structure is best suited for low current discharge.


Key Features:

1) High operating voltage, stable during most of the application lifetime.

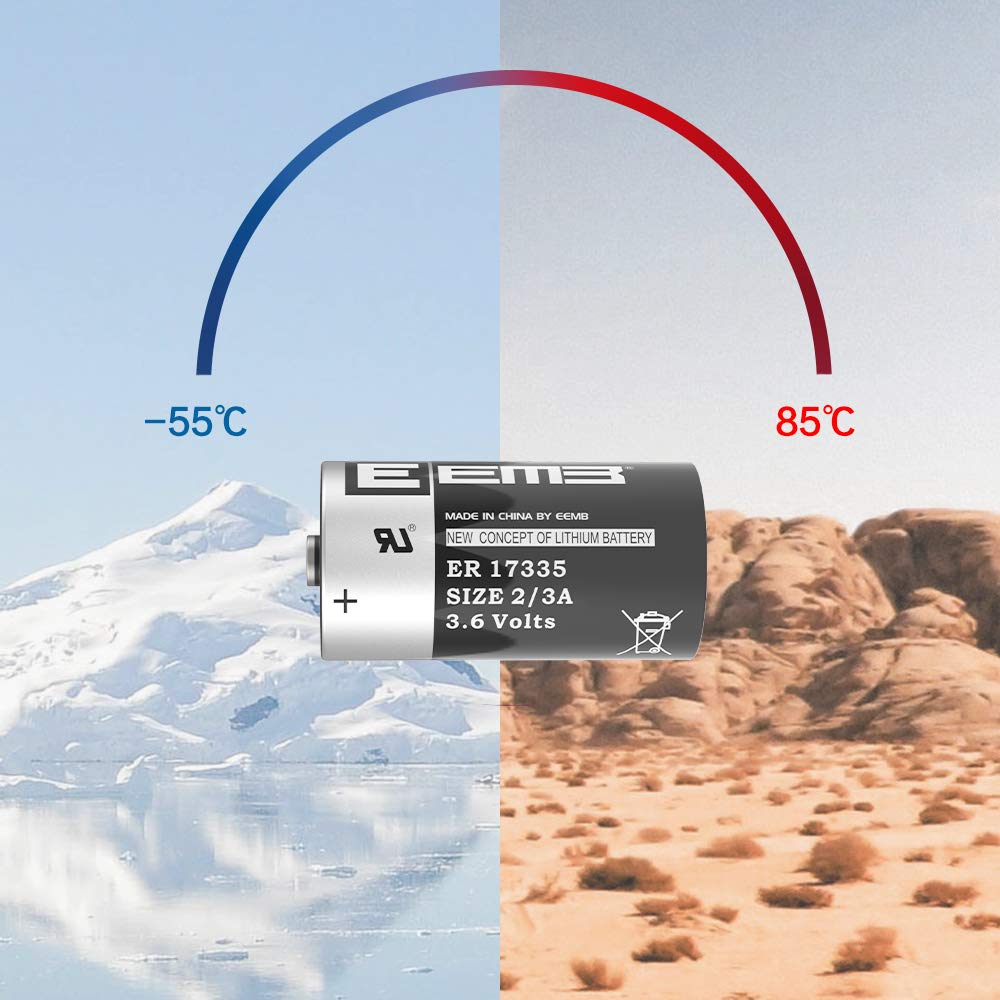

2) Wide Temperature Range from -55℃ to +85℃.
3) Superior Shelf Life and Reliability: over 15 years shelf life at room temperature and self-discharge rate is less than 1% per year.
4) Energy type is bobbin structure and best suited for low discharge current. It may require activation before medium currents can be delivered.

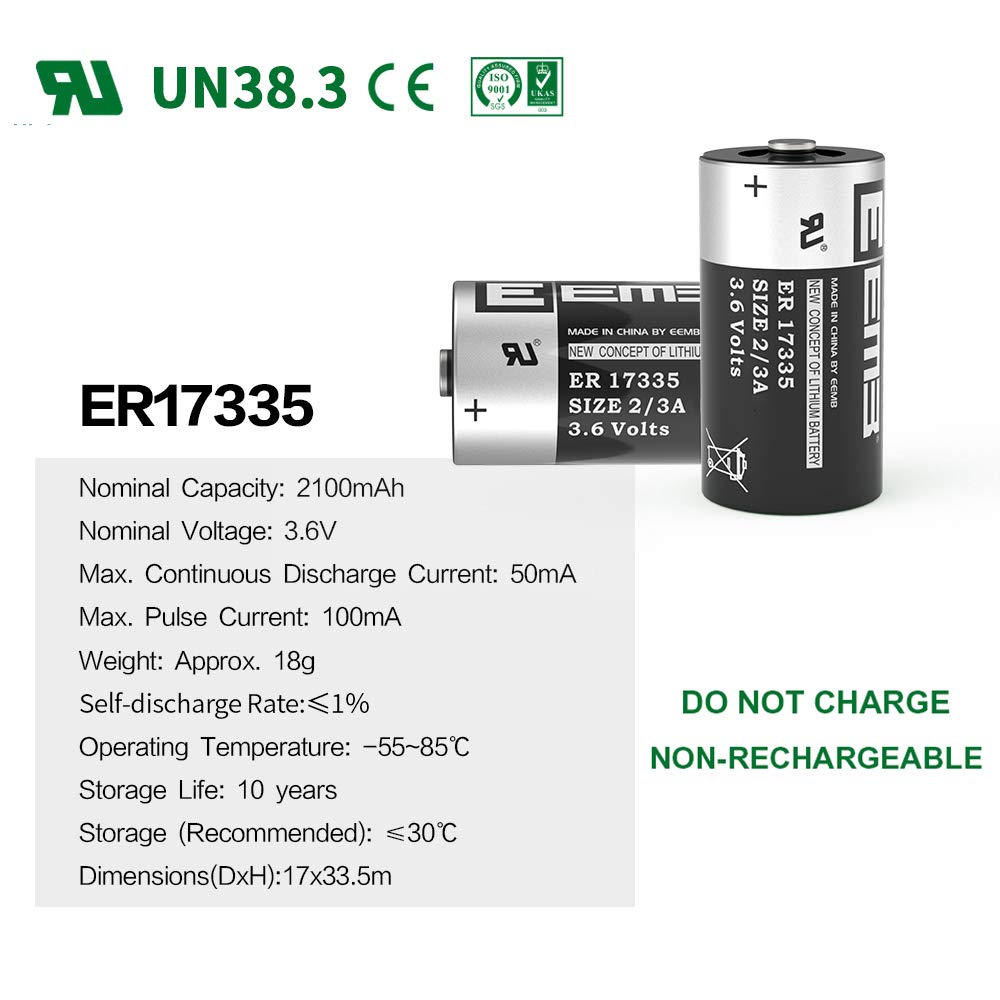

Specifications:

Model: ER17335
Size: D17x H33.5mm
Nominal Voltage: 3.6 V
Nominal Capacity: 2100 mAh
Standard Discharge Current: 1 mA
Weight: 20 g

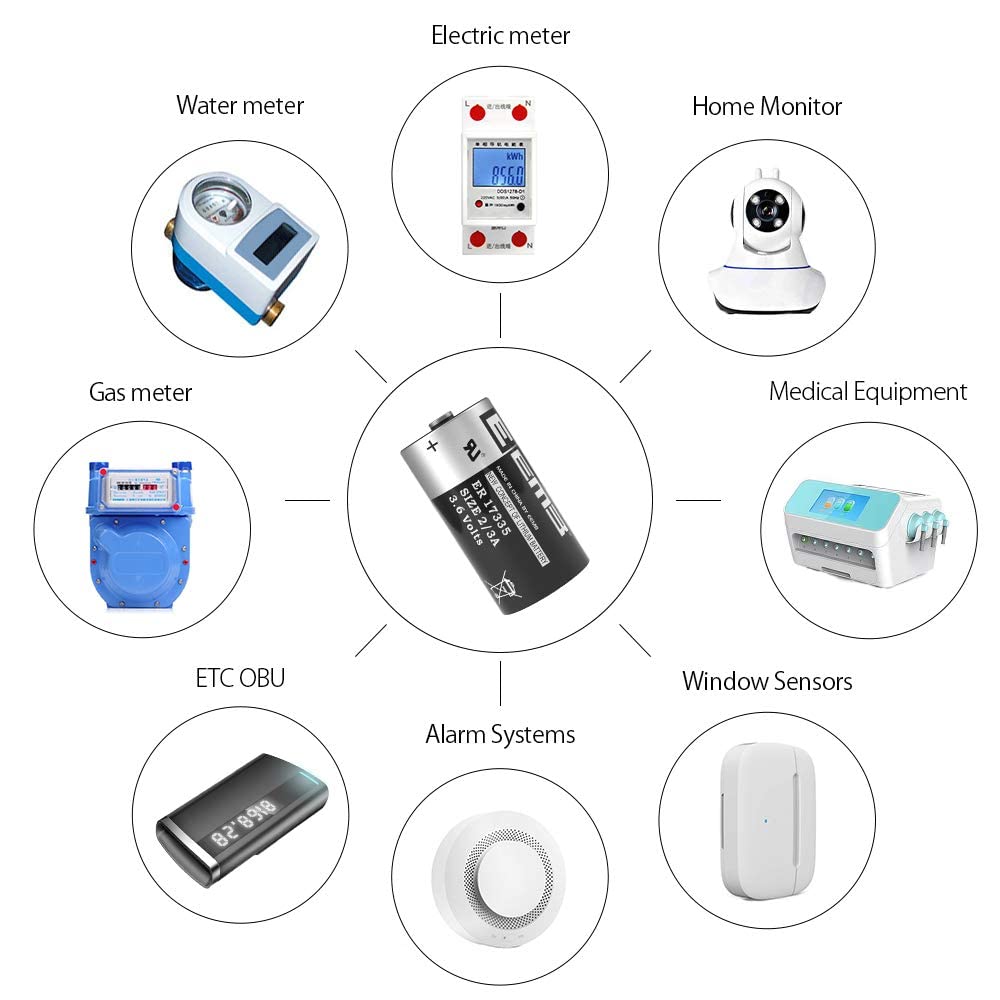

Applications:


Medical Instruments
Cash Registers
Alarms and Security Wireless Devices
Mobile Asset Tracking
Electronic Meters (Water, Gas, Electricity)
Automotive Telematics
Vehicle Tracking Device

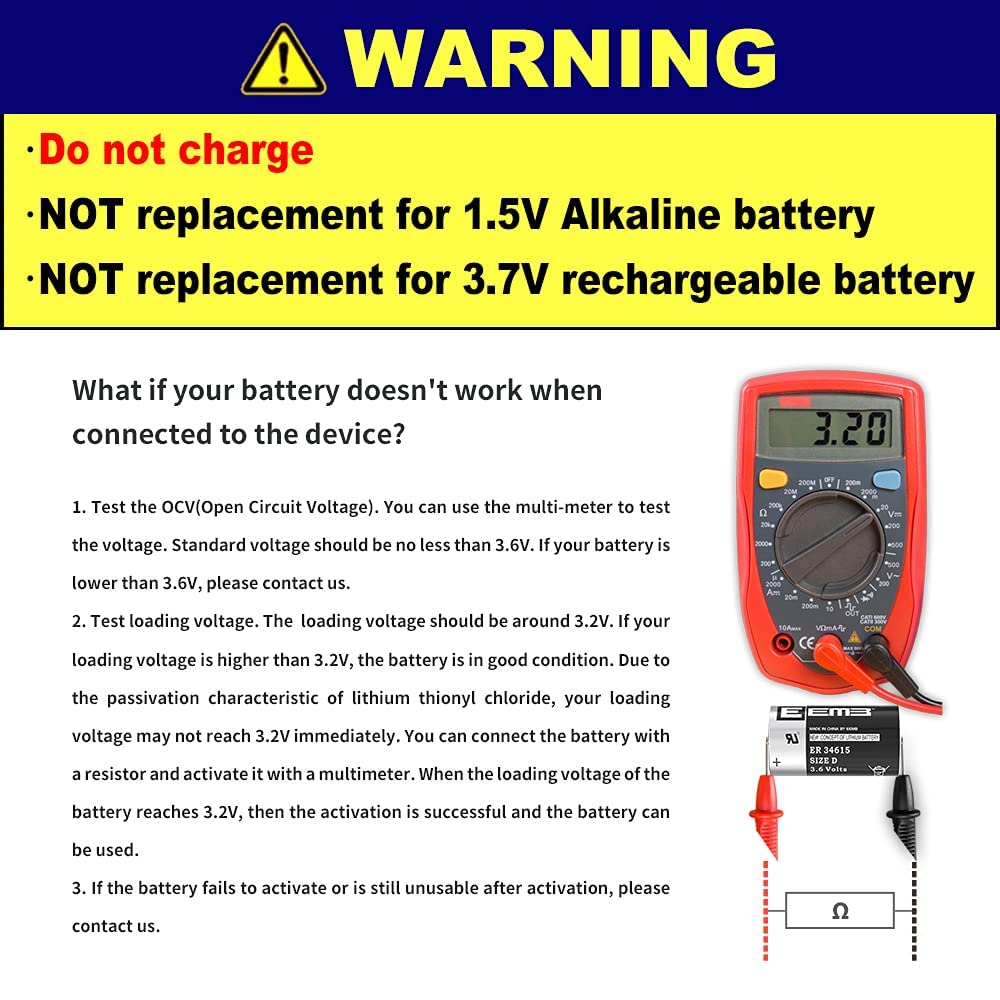

ETC (Electronic Toll Collection System) IMPORTANT NOTICEThanks to the passivation phenomenon lithium thionyl chloride's shelf life is up to 10 years. The battery will "sleep" during storage so consume little energy (low self-discharge rate). Before resume to normal operation, it requires a low discharge current then it will be activated gradually. For more info, please consult the Seller or manufacturer.

EAN: 6933952612431

Package Dimensions: 4.1 x 3.2 x 1.0 inches
