High-precision instrument: Litre unit, large display, 4-digit subtotal and 8-digit subtotal reading, easy to rear
Fuel pump motor: This fuel pump features a 155w 3600 R/min motor, With the flow capacity of 45L fuel (diesel or oil) per minute, it can finish your work quickly
Automatic nozzle: Durable nozzle made of stainless steel, ergonomic handle and automatic design to prevent leakage, inlet and outlet size is 3/4
Clear suction hose & non-clear delivery hose: Supplied with a 2 metres of clear suction hose and 4 metres of non-clear delivery hose is very convenient, which can transfer diesel from barrels and tanks to any place, they are essential
Widely application: The series oil pump is suitable for pumping light oils such as diesel or kerosene for vehicles, construction sites, farms and outside applications or other for other fuel powered equipment
model number: 167323-5350-1515505101
Part Number: 167323-5350-1515505101
Details: Description
:Instructions:
1. Connect all spare parts correctly and make sure that the socket is connected correctly.
2. Power the motor by plugging the power cord into the power source. Use the on/off switch to turn on the pump.
3. Open the fueling nozzle to fill the fueling equipment.
4. After refueling is complete, return the nozzle to its storage position, and then turn off the pump.
Specifications:
Voltage: 12V
Power: 0.21HP / 155W
Speed: 3600 R/min
Inlet/Outlet diameter: 25mm
Output flowing: 45L/min
Max Suction: 16.4ft / 5m
Max Lift: 32.8ft / 10m
Cable Length: 5ft / 1.6m
Max Working Pressure: 3KPa
Environment condition Temperature: -25-55degrees
Relative Humidity : 30--90precent
High atmospheric pressure : 86Kpa--106Kpa
Note:
1. Before connecting the cable, the power supply is 12v DC, +/-5%, the voltage supply must be confirmed. Reset the meter to 0 to ensure that each fueling operation is measured correctly.
2. Before using for the first time, a small amount of liquid must be added to prime the pump. Connect the input and output pipes according to the arrow symbols on the pump.
3. All pumps and connectors must be well sealed and airtight.
4. To ensure that the oil is clean, please use the foot valve with filter provided by us. The time can be used up to 20 minutes for each continuous operation.

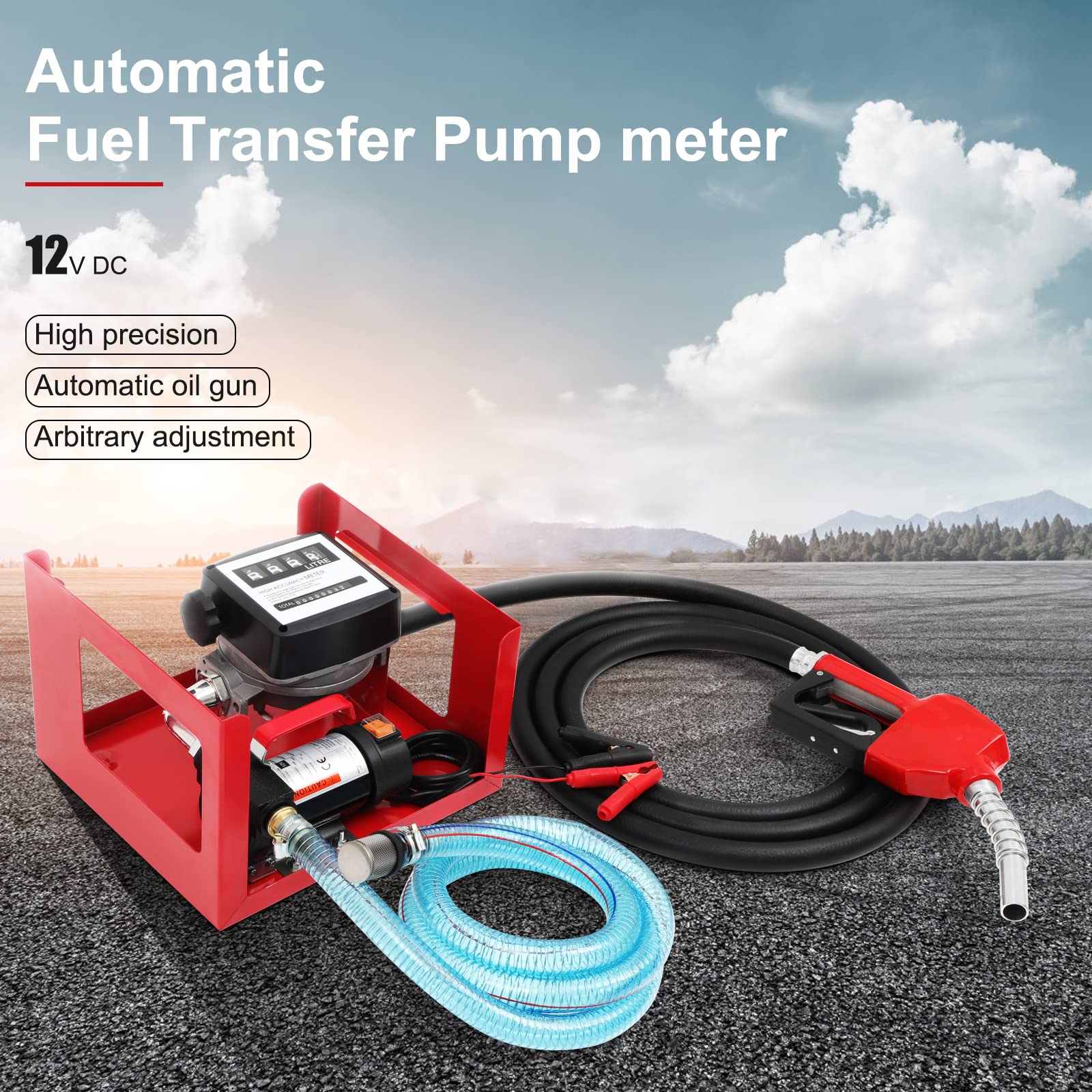

Package Including
1 x Electric oil Pump
1 x Clear Suction Hose
1 x Rubber Deliver Hose
1 x Automatic Nozzle
1 x Fuel Filter
1 x Mechanical fuel meter
2 x Crocodile Clips
